8c1. Fin Trailing Edge Lighting System, continued

This is the complete test setup for one of the small horizontal elevators.  Note the eight equally space LED's hooked to the circuit board shown in the previous picture and the round circuit board that fires off the Strobe Light flash tube at the end.  The large vertical rudders will have 16 LED's each.

Each Strobe Light requires its own circuit to build up the 4000 volts needed to cause the bright flash .  A master control triggers all four strobe light circuits simultaneously.

News Flash - Complete circuitry and components arrive from New Zealand - Monday, June 1 , 1999

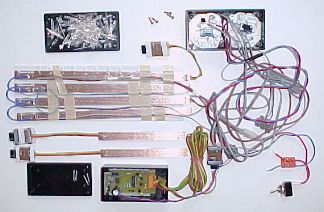

This is all the parts and wiring that will have make Bob Correll's new F-18 Jet Bike light up like something right out of Star Wars!  The fans will love it!  Thank you Murray Design of New Zealand!!
