8. Rear Fairing and Fins Development

S Rear Fins.JPG (27678 bytes)

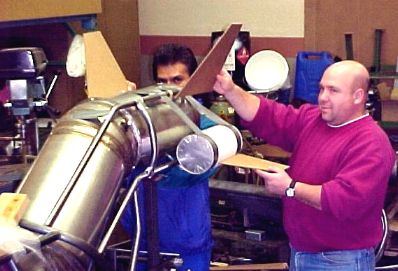

The 6" diameter parachute canister mockup and cardboard fins are the start of the aft fairing geometry.  The twin rudders were enlarged further and moved considerably forward after we studied a series of F-18 aircraft photos we found on the Internet.

S Tail Structure.JPG (54069 bytes)

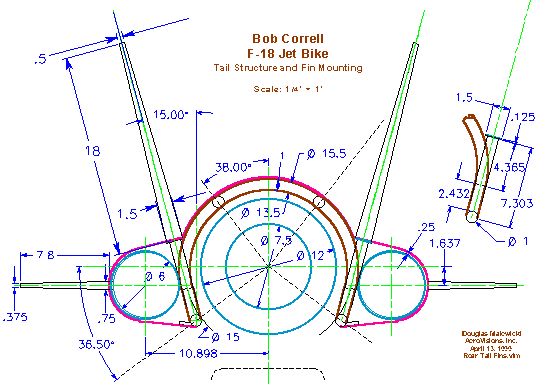

This rough CAD drawing by Malewicki will be used to discuss baseline possibilities for fin mounting, parachute canister mounting, and bodywork.
