6a. JP- 4 Tank, continued

S Tank fit 2.JPG (22543 bytes)

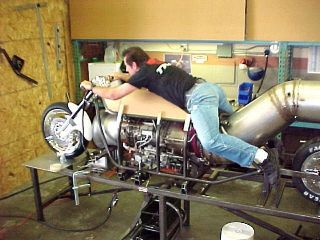

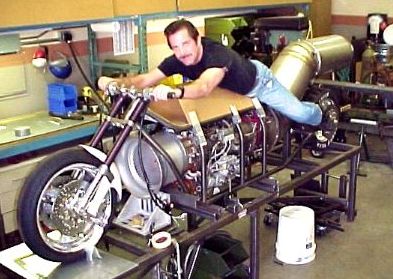

Bob tests out tank support angle and relative positioning of the 3 compartment tank.



S Bob testing tank fit.JPG (35357 bytes)

Riding Position
Remember the Kevlar bullet proof custom belt?
(Essential protection from a possible 70,000 RPM turbine blade failure).

Bob Tail Cushion.JPG (15951 bytes)
June 19th - Determining where the 2" thick padded seat back will be located.
