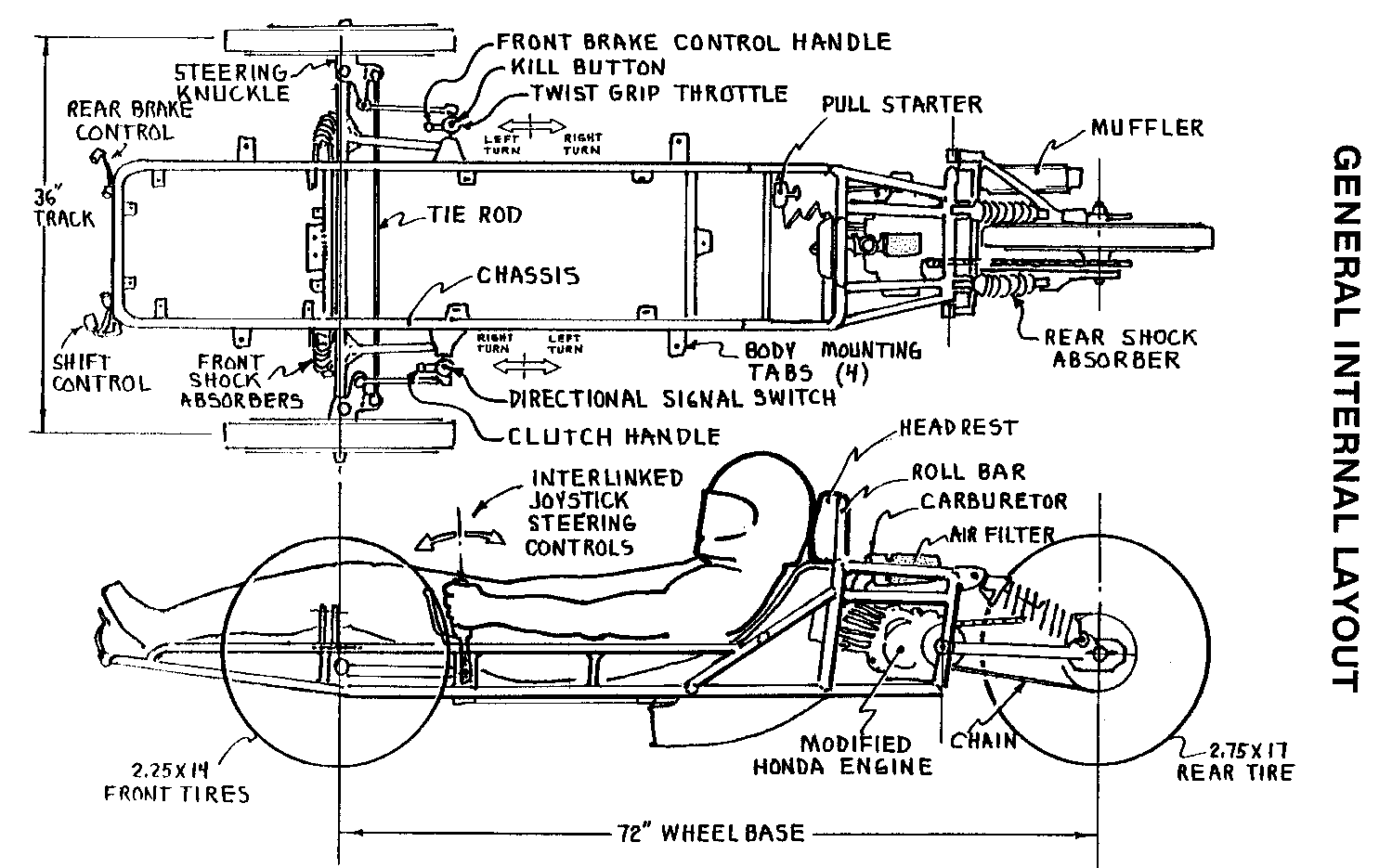

This drawing
from the California Commuter Plans shows the internal details of the
construction and lay down seating arrangement (necessary for obtaining
minimum frontal area) for the 230 pound (empty) California Commuter.

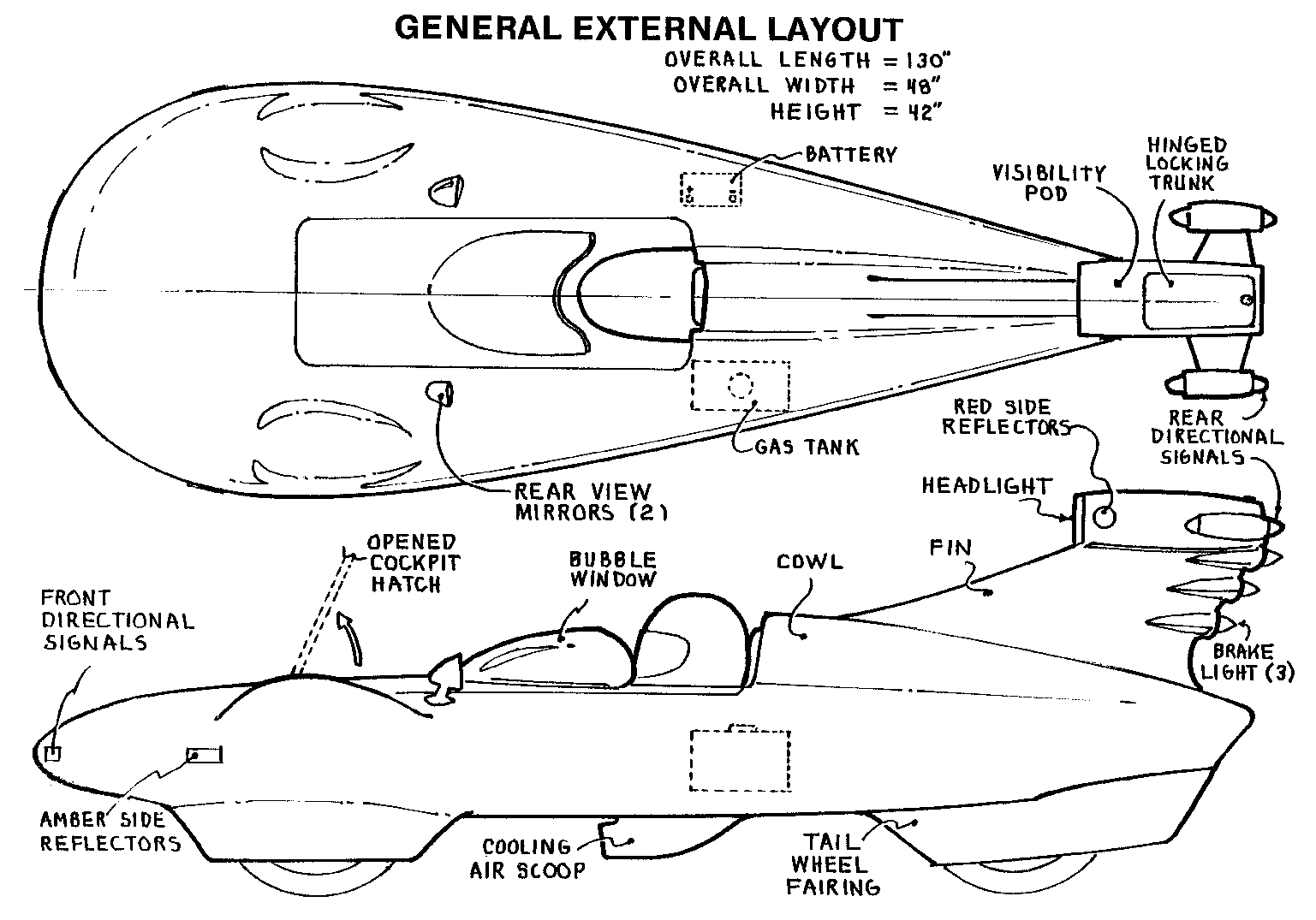

This drawing
shows the external configuration.
Complete
chassis.

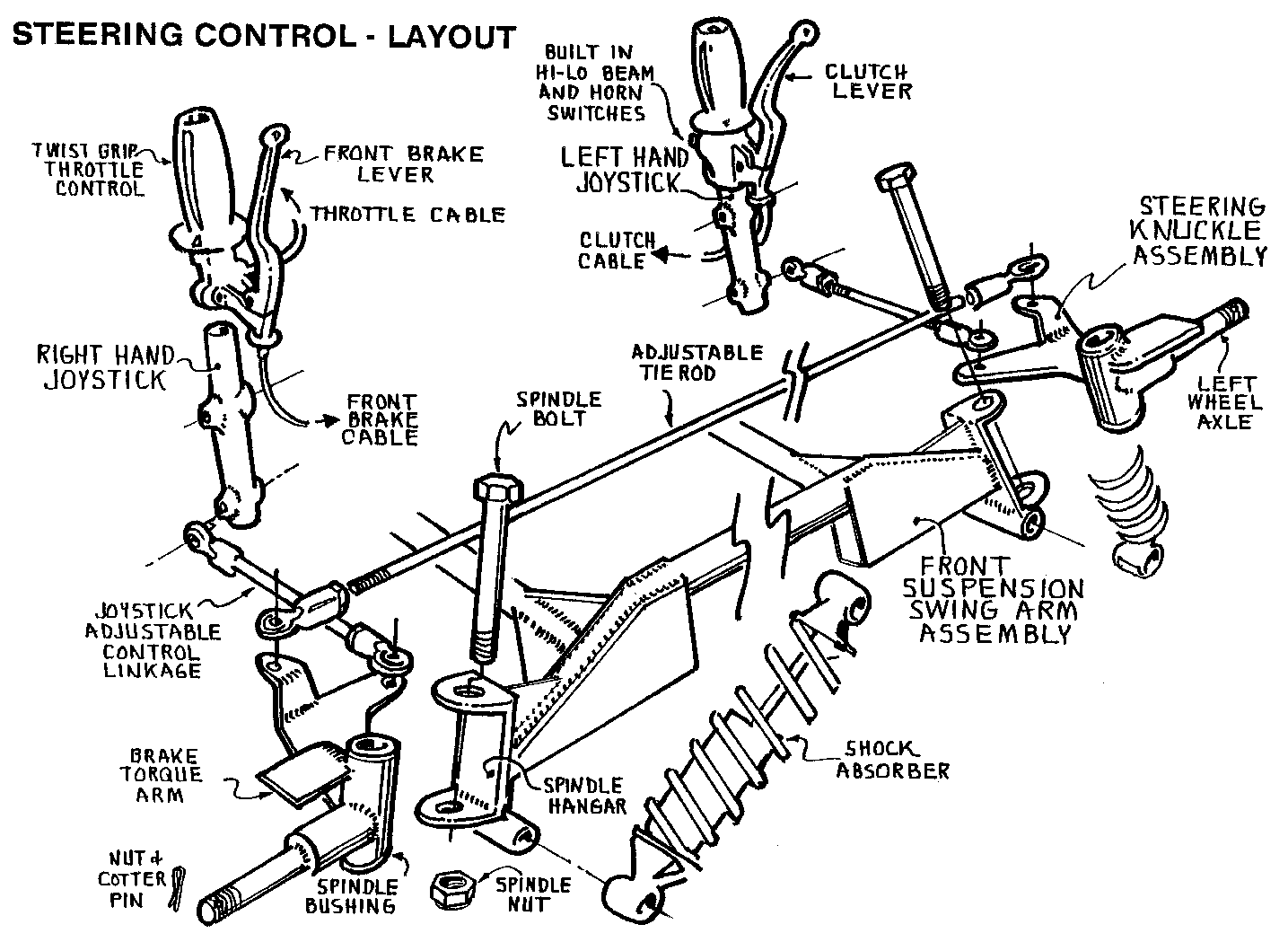

Controls and
interlinked joy stick steering system details.

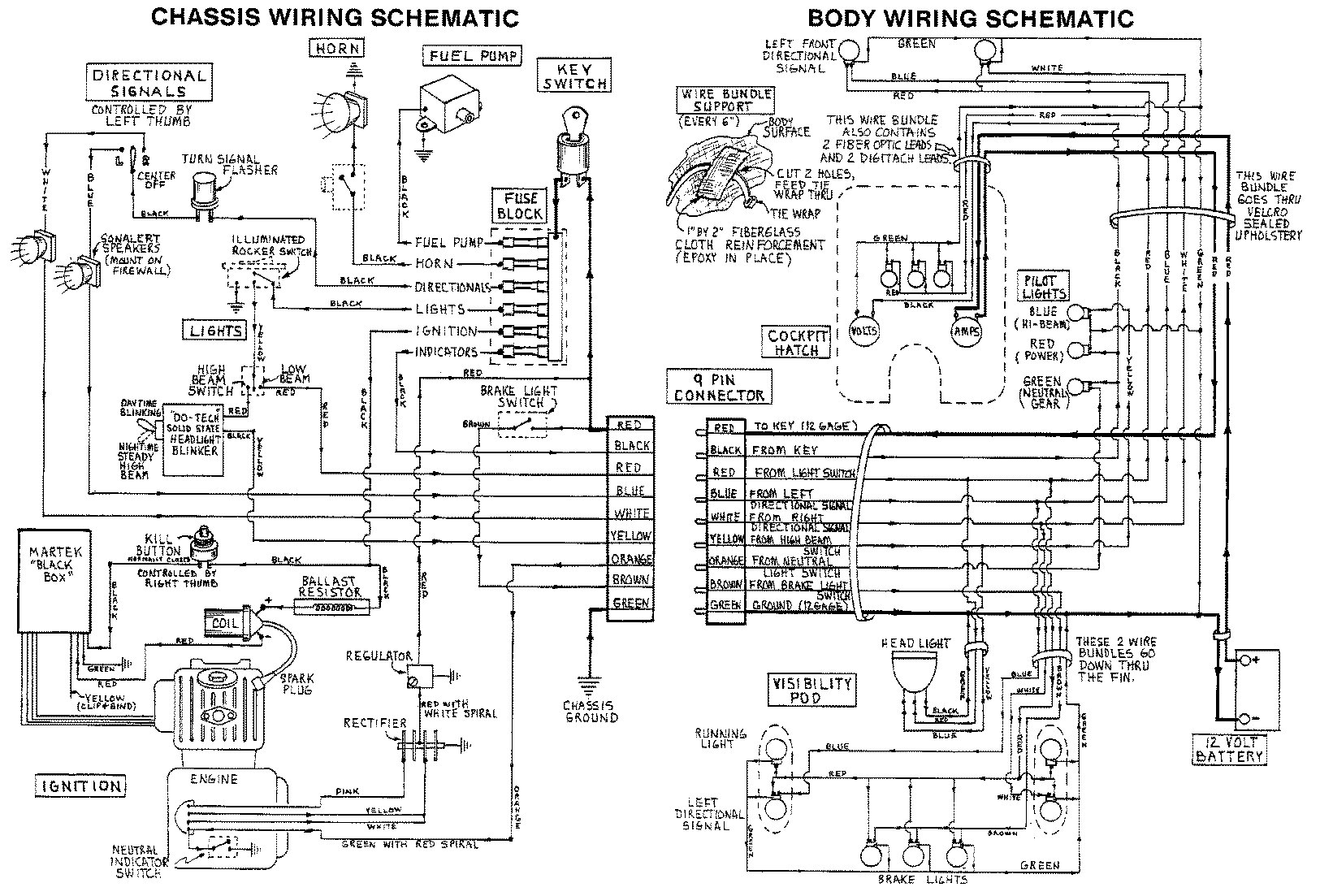

Complete
electrical wiring diagram.

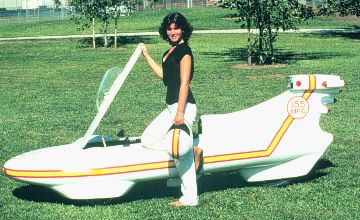

You can see
the small size of the California Commuter when a person stands next to
it.
